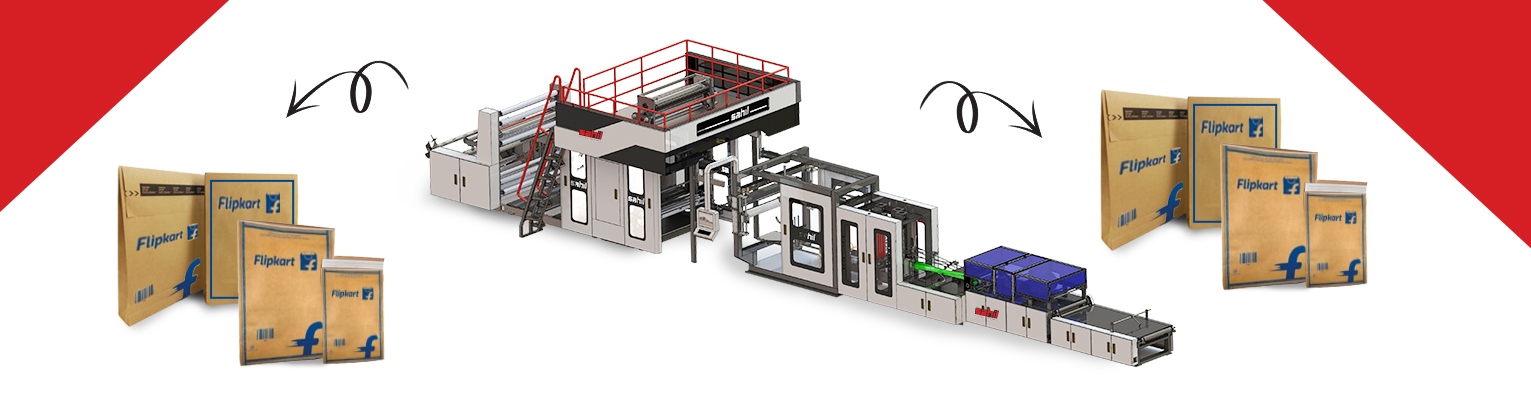

E- Comm-1 produces e-commerce peel and seal paper bags with cold glue technology. This new generation Ecommerce Paper Bag Making Machine design gives you highest freedom of bag size range where high production and low operating expense are assured. Online printing makes machine universal and completes bag with printing & Taping in a single pass.
Sample box
Machine Diagram
| TECHNICAL PARAMETERS | |
|---|---|
| Cutting Length | 170 MM – 650MM |
| Bag Height | 60MM – 625MM |
| Bottom Width | 0 – 150MM |
| Cold Glue Section | 1 |
| Speed | 150 – 200 BAGS/PER MIN |
| Web Guide | AUTOMATIC |
| Max. Roll Weight | 700KG |
| Max. Roll Width | 1400MM |
| Tension Control | AUTOMATIC |
| Peel & Seal Mechanism | HOT MELT WITH 2 RELEASE TAPES |
| Power Consumption | 20KW |
| Flexo Printing Station | 2 COLOR |
| Type of Glue for Bags Side Sealing | COLD GLUE |
| Control System | COMPLETE SERVO DRIVEN |
| Machine Dimension (L x W x H) | 19000MM X 4200MM X 3100MM |
| S no | Parts of name | Brand’s name | rand’s country | |
|---|---|---|---|---|
| 1 | 7 Axis Motion Controller |  |
JAPAN | |
| 2 | Main traction servo | |
JAPAN | |
| 3 | Cutting servo | |
JAPAN | |
| 4 | Traction servo drive | |
JAPAN | |
| 5 | Cutting servo drive | |
JAPAN | |
| 6 | Pulling Servo motor | |
JAPAN | |
| 7 | Stab Servo motor | |
JAPAN | |
| 8 | Gluing Servo motor | |
JAPAN | |
| 9 | Transmission Servo motor | |
JAPAN | |
| 10 | Pulling Servo drive | |
JAPAN | |
| 11 | Stab Servo drive | |
JAPAN | |
| 12 | Gluing Servo drive | |
JAPAN | |
| 13 | Transmission Servo drive | |
JAPAN | |
| 14 | Contractors |  |
FRANCE | |
| 15 | Drive bearing |  |
SWITZERLAND | |
| 16 | Glue dispensing unit |  |
JAPAN | |
| 17 | PLC | |
JAPAN | |
| 18 | MCB | |
FRANCE | |
| 19 | Eye Mark Sensor |  |
GERMANY | |
| 20 | HMI (15inch) | |
JAPAN | |
| 21 | Relay Card |  |
JAPAN | |
| 22 | Proximity Sensor |  |
JAPAN |
Ecommerce Paper Bag Making Machine
