Automatic Paper Carry Bag Making Machine

ZB50B handbag bottom-gluing machine features a continuous functions of automatic delivery of manually-folded bag bottom (paperboard can inserted or not), automatic glue spray, automatic pasting, automatic folding, pressing and finished bag bottom output. This machine adopts touch-screen operation, photoelectric switch, and four hot-melt spray guns. The user can adjust the glue thickness and length according to requirements. With high precision and speed, this machine can produce various specifications of bags.

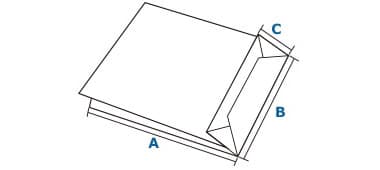

Suitable Paper :

ABC
Max.Size500450180
Min.Size20018060
  • Kraft paper, art paper, white board and ivory board.

Technical Parameters :

Bottom width60-180mm
Bag Width180-450mm
Sheet Wigth170g-350g/m2
Total power6kw
Machine size5500x1500x1600mm
Speed70bags/min
Total weight1.8T
Glue TypeHot-melt glue

Technological Process :

Connect Now!

Machine Specifications

S no Name of equipment
1 Bottom width 60-180mm
2 Bag Width 180-450mm
Machin Part 4
Machin Part 3
Machin Part 2
Machin Part 1
