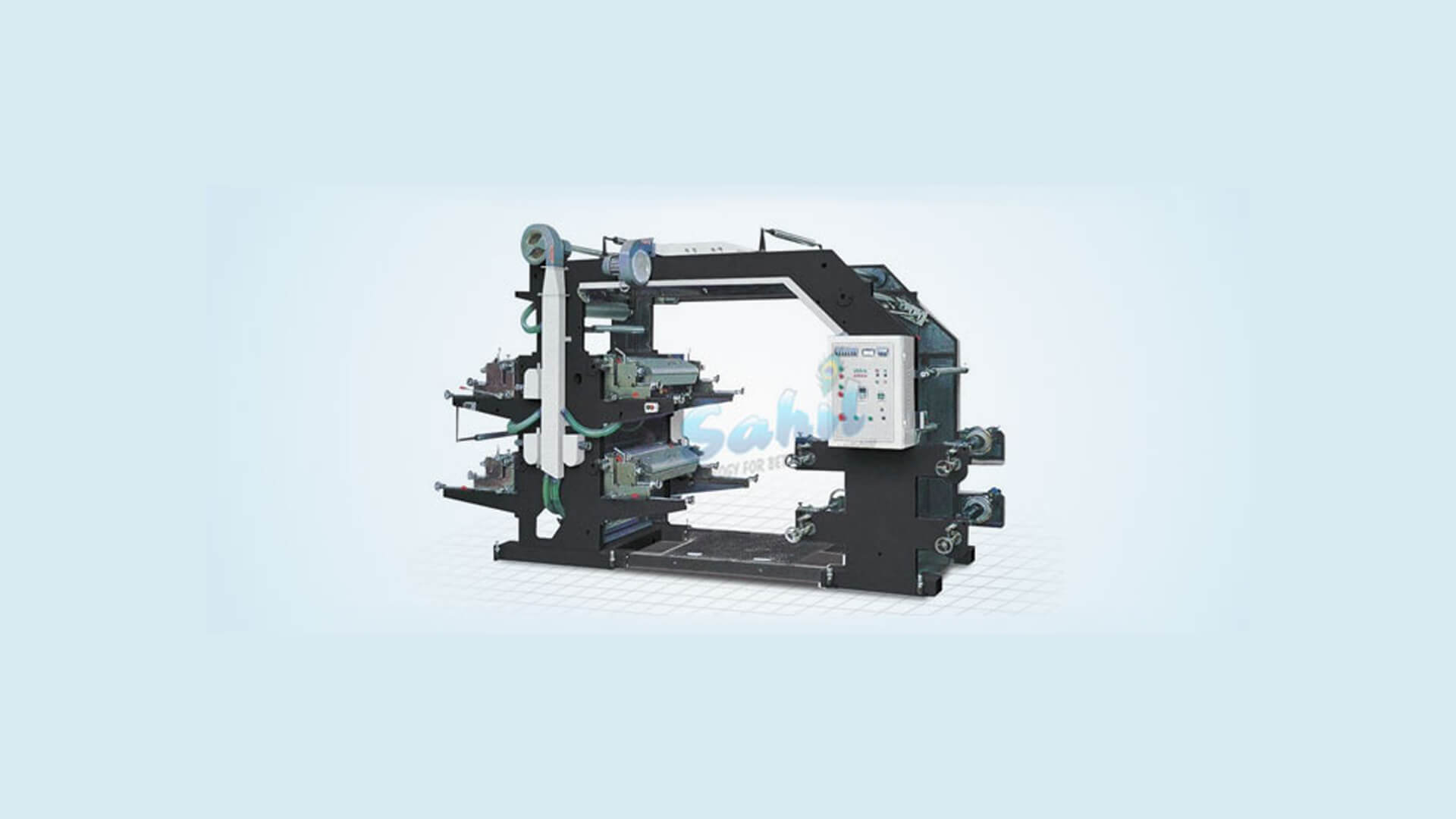

High Speed Flexo Printing Machine

Stack type Four Colour High Speed Flexo Printing Machine ensures easy operation, accurate color process, particularly for long printing runs on all Rolling material multicolor /special colors printing with CMYK can be realized.

This bridge type flexo printing machine with more stable and better printing quality, suitable for printing HDPE, LDPE, PP, rolling paper, nonwoven fabric etc.

Printing can be carried out on coarse surfaces of non-woven fabrics. Patterned lines of fine colors will be printed. It features high color saturation, strong adhesive force, good smoothness and high speed.

Performance and Features

  • Easy operation, flexible starting, accurate color register.
  • The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
  • Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
  • The printing ink is spread by the anilox cylinder with even ink color.
  • Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
  • 360° continuous and adjustable longitudinal register device.
  • The frequency control of motor speed adapts to different printing speeds.
  • There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
  • Winders controlled by Magnetic power Controller
  • Double re-winder & un-winder
S no Name of equipment
1 YT-2800 Printing width(760mm), Printing length( 180-990 mm), Plate thickness(2.38mm), Machinery dimension(3800×1800×2200)
2 YT-21000 Printing width(960mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(3800×2000×2200)
3 YT-21200 Printing width(1160mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(3800×2200×2200)
4 YT-4800 Printing width(760mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×1800×2400)
5 YT-41000 Printing width(960mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×2000×2400)
6 YT-41200 Printing width(1160mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×2200×2400)
7 YT-6800 Printing width(760mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension( 5000×1800×2800)
8 YT-61000 Printing width(960mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×2000×2800)
9 YT-61200 Printing width(1160mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×2200×2800)
Ask For Price

Flexo Printing Machine

Non Woven Roll to Roll Flexo Printing Machine are ideal for printing various images, designs and patterns of different colors on non woven fabric. This machine is available in two modules in 2 color & 4 color. This machine is heavy duty built with cast iron material, can print a variety of materials, such as Non-woven, plastic, and paper, etc. Four Color Flexo Printing Machine, adopting rubber or photosensitive resin as a printing plate, is commonly known as the flexographic printing machine.

It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag,

Performance and Features

  • Easy operation, flexible starting, accurate color register.
  • The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
  • Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
  • The printing ink is spread by the anilox cylinder with even ink color.
  • Reliable drying system coordinated with high-speed rotation, it will automatically break the circuit when the machine stops.
  • 360° continuous and adjustable longitudinal register device.
  • The frequency control of motor speed adapts to different printing speeds.
  • There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy to operate the machine when the plate is installed.
  • Winders controlled by Magnetic power Controller
  • Double re-winder & un-winder
S no Name of equipment
1 Model: YT-2800 Printing width(760mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(3800×1800×2200)
2 Model: YT-21000 Printing width(960mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(3800×2000×2200)
3 Model: YT-21200 Printing width(1160mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(3800×2200×2200)
4 Model: YT-4800 Printing width(760mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×1800×2400)
5 Model: YT-41000 Printing width(960mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×2000×2400)
6 Model: YT-41200 Printing width(1160mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×2200×2400)
7 Model: YT-6800 Printing width(760mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×1800×2800)
8 Model: YT-61000 Printing width(960mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×2000×2800)
9 Model: YT-61200 Printing width(1160mm), Printing length(180-990 mm), Plate thickness(2.38mm), Machinery dimension(5000×2200×2800)
Ask For Price
