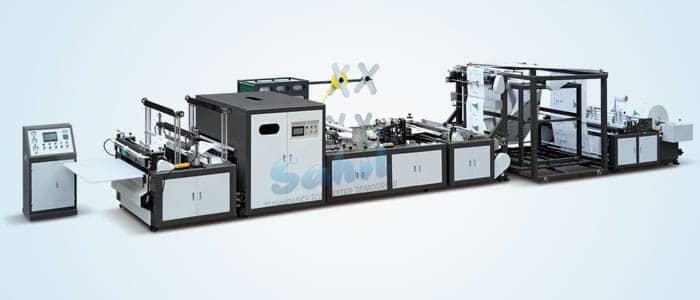

automatic box type non woven bag making machine with handle attachment

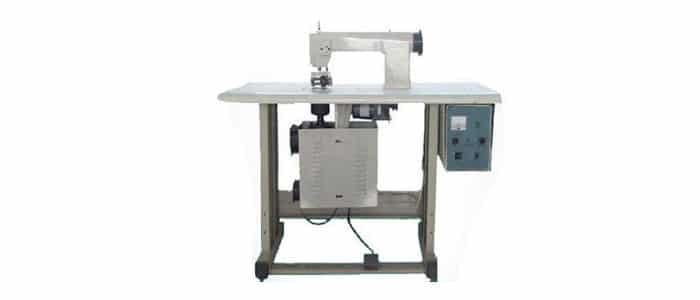

ultrasonic non woven bag sealing machine n
nonwoven rolltoroll slitting machine

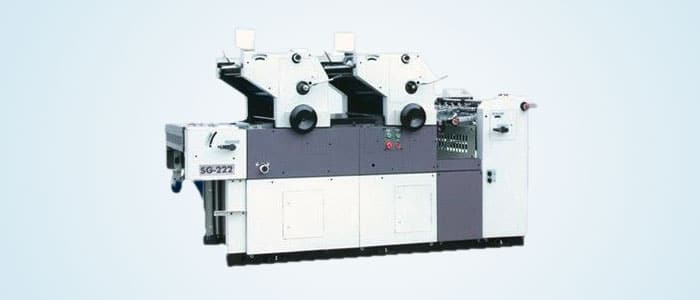

two colour non woven bag printing machine1
single colour non woven bag printing machine1 single color
non woven bag making machine
Non woven bag making machine
automatic box type non woven bag making machine with handle attachment
ultrasonic non woven bag sealing machine n
nonwoven rolltoroll slitting machine
two colour non woven bag printing machine1
single colour non woven bag printing machine1 single color
non woven bag making machine
Non woven bag making machine

Non-Woven Bag Making Machine

Non-Woven Bag Making Machine is a revolution in the packaging industry with its more controlled and precise performance. In the machine, there are installed various control devices like auto-counting and other safety alarms for safe and secure operation. It is also integrated with an advanced Ultrasonic-bonding technology that ensures a highly strong seal in the bags.

The major advantage in this machine is its auto tension control and accurate high-speed cutting. It is highly acknowledged among customers for its excellent production speed, customization option in width and length of the bag, the requirement of less manpower and continuous operation.

Connect Now!

Machine Specifications

S no Name of equipment
1 Production speed NW-600 (40-90 PCS/min), NW-700 (40-90 PCS/min), NW-800 (40-90 PCS/min)
2 Total Power NW-600 (6.0 KW), NW-700 (6.0 KW), NW-800 (6.0 KW)
3 Weight Approx. NW-600 (3000 kgs), NW-700 (3000 kgs), NW-800 (3000 kgs)
4 Man-Power required NW-600 (1 skilled/1 unskilled), NW-700 (1 skilled/1 unskilled), NW-800 (1 skilled/1 unskilled)
5 Bag Making Width NW-600 (100-800mm), NW-700 (100-800mm), NW-800 (100-800mm)
6 Bag Making length NW-600 (200-480 mm), NW-700 (200-580 mm), NW-800 (200-680 mm)
7 Bag making thickness NW-600 (30-100 gsm), NW-700 (30-100 gsm), NW-800 (30-100 gsm)
8 Machine Dimension(LxWxH) NW-600 (7600x1650x1800), NW-700 (8000x1800x2000), NW-800 (8500x1850x2000)
Machin Part 3
Machine Parts
Machin Part 2
Machine Parts
Machin Part 1
Machine Parts
