Multi Colour Non Woven Bag Printing Machine

Non woven bag printing machine is used for ready made Non woven bag. Ucut bags, Dcut bag, semi box bag can be printed on non woven bag printing machine. This carry bag printing machine can also print non woven sheets which can after manually stitched in non woven bags. Non woven Bag to Bag printing machine (Satellite Model) is compact & has an efficient design. Sahil Two colour non woven fabric offset printing machines have been specially made for quick printing to meet the requirement for quality short/long run jobs on non woven d cut bags & fabrics. The non woven fabric used to produce bags is 100% flexible, highly durable, waterproof, and stain resistant. It is also breathable. The non woven fabric can be easily manufactured in a variety of attractive hues ranging from mild to dark colors.

Key Features :

  • 2-in-1 model machine suitable to print multi colour (4 colour looks) in single pass.
  • Touch Screen with Pneumatic impression system with Air Compressor.
  • Print halftone jobs, picture images and background with decent print quality on Non-Woven Bags.
  • Chrome-plated cylinders, stainless steel water fountain roller, making the machines long use life.
  • Hard Et Ground Gears.
  • Bearing type pull side lay for Micro Registration Settings.
  • Three Cylinder design with Chain delivery.
  • Front plate loading system.
  • Exhaust Fan for quick Drying.
  • Pre-set digital copy counter.
  • Powder spray unit.
  • Centralized Oil Lubrication System with pump.
  • Anti-Static Charger to remove Magnet from printing stock.
  • Double-Sheet Detector with Photo electrical Sensor.
  • Skip Feed function is realizable to ensure the ink density.
  • Power supply cut-off while opening delivery guard.
  • Jogger System to Collect the Bags/Papers on Delivery.

Print Non-woven D-Cut Bags with Vacuum only.

S no Name of equipment
1 Paper/Bag Size (mm) SG-322 ECO(406x560), SG-324 ECO(457x620)
2 Max. PrIntIngArea (mm) SG-322 ECO(375x550), SG-324 ECO(457x620)
3 Min. Paper/Bag Size (mm) SG-322 ECO(125 x 180), SG-324 ECO(180 x260)
4 Plate Size (0.20-0.28mm) SG-322 ECO(420x560), SG-324 ECO(480x620)
5 Blanket Size (mm) SG-322 ECO(460x560), SG-324 ECO(505x620)
6 Paper Thickness SG-322 ECO(30-250g/m2), SG-324 ECO(30-250g/m2)
7 Bag Thickness SG-322 ECO(60-150g/m2), SG-324 ECO(60-150g/m2)
8 Ink Roller System (3 form) SG-322 ECO(14+10 Rollers), SG-324 ECO(14+10 Rollers)
9 Water Roller System(1 form) SG-322 ECO(4+3 Rollers), SG-324 ECO(4+3 Rollers)
10 Printing Speed (for Paper) SG-322 ECO(2000-8000iph), SG-324 ECO(2000-7000iph)
11 Printing Speed (for Bag) SG-322 ECO(2000-3000iph), SG-324 ECO(2000-3000iph)
12 Power Required (single phase) SG-322 ECO(2.5 kw), SG-324 ECO(3.0 kw)
13 Machine Dimension(LxWxH) SG-322 ECO(3200x1100x1350), SG-324 ECO(3500x1200x1500)
14 Gross Weight Approx SG-322 ECO(1700 Kg), SG-324 ECO(1900 Kg)
Ask For Price

Single Colour Non Woven Bag Printing Machine

Sahil Graphics has developed next-generation Non -woven D-cut bag Printing Machines to offer high-quality print results on Non Woven Cloth bags. Sahil Single Colour Non-woven Bag to Bag printing machine is compact & has an efficient design. Sahil has non woven fabric offset printing machines have been specially made for quick printing to meet the requirement for quality short/long run jobs on non-woven bags & fabrics. Utilizing technology of printing nonwoven d cut bags with vacuum developed by Sahil’s own R & D department the non-woven bag to bag printing machines have proved they are worth not only in India but abroad as well.

Sahil one colour non woven fabric printing machine provide best value for money to the screen printers entering in high quality printing work to increase the production and quality with minimum budget. We are delighted to offer our range of Non Woven D cut Bag printing machine. In which you can print Pictures & Images, half tone jobs, background and screen jobs with decent print quality including maximum production. Sahil Non woven bag to bag offset printing machines can accommodate any images you can produce. We give a nice machine to bringing out a best result in printing on non woven fabrics and to make beautiful bags for promotion & shopping.

What are “Eco- friendly” “Go-Green” bags! These bags are non-woven, bio-degradable, which are easily, degradable in the soil with exposure to sun, rain or water in a few days of time. Better in quality, handling, cost is cheaper, when compared with other, non-degradable bags. Quality standards are maintained to ISO 9001 with Eco-friendly Vegetables printing inks, used in these bags.

S no Name of equipment
1 Max.Paper/Bag Size(mm) SG-118(365 x 470), SG-122(406 x 560), SG-124(457x 620)
2 Max. Printing Area(mm) SG-118(345 x 450), SG-122(375 x 550), SG-124(440 x 605)
3 Min.Paper/Bag Size(mm) SG-118(125 x 180), SG-122(125 x 180), SG-124(180 x 260)
4 Plate Size(0.20-0.28mm) SG-118(395 x 470), SG-122(420 x 560), SG-124(505 x 620)
5 Blanket Size (mm) SG-118(420 x 470), SG-122(460 x560), SG-124(505x 620)
6 Paper thickness 30-250g/m2
7 Bag thickness 42-150g/m2
8 Printing Speed(for Paper), Printing Speed (for Bags) 2000-8000 IPH, 2000-3000 IPH
9 Ink Rollers 14 (3 form inking rollers)
10 Water Rollers 5 (2 form inking rollers)
11 Power (single Phase) SG-118(1.5KW), SG-122(1.5KW), SG-124(2.0KW)
12 Overall Dimensions SG-118(1760 X 935 X 1340mm), SG-122(1760 x 1035 x 1340mm), SG-124(2000 x 1100 x 1420 mm)
13 Weight SG-118(700 kg), SG-122(800 kg), SG-124(900 kg)
Ask For Price

Four Colour Non Woven Bag Printing Machine

Sahil Graphics (An ISO: 9001 Certified Co.,) has been the Indian pioneer in the importer & suppliers of sophisticated Non-woven fabrics bag printing machines & paper printing machines. SG has developed new generation 4-colour Non -woven D-cut bag Printing Machines to offer high quality multi colour print results on Non Woven Cloth bags. This is 2-in-1 Model Machine suitable to print high quality multi-colour printing in single pass on Non-woven bags and Papers.

Sahil four colour CMYK Non woven Bag to Bag printing machine is compact & has an efficient design. Sahil multi colour non woven fabric offset printing machines have been specially made for quick printing to meet the requirement for quality short/long run jobs on non woven bags & fabrics. Utilizing technology developed by Sahil’s own R&D department the non-woven bag to bag printing machines have proved their worth not only in India but abroad as well.

S no Name of equipment
1 Max.Paper/Bag Size(mm)
2 Max. Printing Area(mm)
3 Min.Paper/Bag Size(mm)
4 Plate Size(0.20-0.28mm)
5 Blanket Size (mm)
6 Paper thickness
Ask For Price

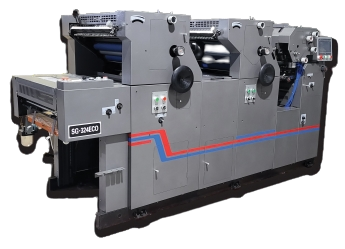

Three Colour Non Woven Bag Printing Machine

S no Name of equipment
1 Max.Paper/Bag Size(mm) SG-318(365 x 470), SG-322(406 x 560), SG-324(457 x 620)
2 Max. Printing Area(mm) SG-318(345 x 450), SG-322(375 x 550), SG-324(457 x 620)
3 Min.Paper/Bag Size(mm) SG-318(125 x 180), SG-322(125 x 180), SG-324(180 x 260)
4 Plate Size(0.20-0.28mm) SG-318(395 x 470), SG-322(420 x 560), SG-324(480 x 620)
5 Blanket Size (mm) SG-318(420 x 470), SG-322(460 x560), SG-324(505 x 620)
6 Paper thickness SG-318(30-250g/m2), SG-322(30-250g/m2), SG-324(40-250g/m2)
7 Bag thickness SG-318(42-150g/m2), SG-322(42-150g/m2), SG-324(60-150g/m2)
8 Ink Rollers SG-318(14 (3 form inking rollers)), SG-322(14 (3 form inking rollers)), SG-324(14 Ink Rollers)
9 Water Rollers SG-318(5 (2 form inking rollers)), SG-322(5 (2 form inking rollers)), SG-324(4 Water Rollers)
10 Printing Speed(for Paper) SG-318(2000-8000 IPH), SG-322(2000-8000 IPH), SG-324(2000-7000 IPH)
11 Printing Speed(for Bags) SG-318(2000-3000 IPH), SG-322(2000-3000 IPH), SG-324(2000-3000 IPH)
12 Power (single Phase) SG-318(3KW), SG-322(3KW), SG-324(4KW)
13 Overall Dimensions SG-318(3500 X 950 X 1340mm), SG-322(3600 x 1100 x 1340mm), SG-324(4000 x 1200 x 1420mm)
14 Weight SG-318(1800 kg), SG-322(2000 kg), SG-324(2000 kg)
Ask For Price

Two Colour Non Woven Bag Printing Machine

Two Colour Non-woven fabrics bag printing machine is 2-in-1 Model Machine suitable to print two colours in single pass on Non-woven bags and Papers & four colour by passing the same two times. SG has developed next generation Non -woven two colour bag Printing Machines to offer high quality print results on Non Woven Cloth Printing. SG-222 Two Colour Non woven D cut bag printing machine is developed with a classic modern designing idea.

Sahil Imported Non woven Bag to Bag printing machine is compact & has an efficient design. Sahil bi-colour non woven fabric offset printing machines have been specially made for quick printing to meet the requirement for quality short/long run jobs on non woven d cut bags & fabrics.

S no Name of equipment
1 Max.Paper/Bag Size(mm) SG-218(365 x 470), SG-222(406 x 560), SG-224(457x 620)
2 Max. Printing Area(mm SG-218(345 x 450), SG-222(375 x 550), SG-224(440 x 605)
3 Min.Paper/Bag Size(mm) SG-218(125 x 180), SG-222(125 x 180), SG-224(180 x 260)
4 Plate Size(0.20-0.28mm) SG-218(395 x 470), SG-222(420 x 560), SG-224(505 x 620)
5 Blanket Size (mm) SG-218(420 x 470), SG-222(460 x560), SG-224(505x 620)
6 Paper thickness SG-218(30-250g/m2), SG-222(30-250g/m2), SG-224(30-250g/m2)
7 Bag thickness SG-218(42-150g/m2), SG-222(42-150g/m2), SG-224(42-150g/m2)
8 Printing Speed(for Paper) SG-218(2000-8000 IPH), SG-222(2000-8000 IPH), SG-224(2000-8000 IPH)
9 Printing Speed (for Bags) SG-218(2000-8000 IPH), SG-222(2000-8000 IPH), SG-224(2000-8000 IPH)
10 Ink Rollers SG-218(14 (3 form inking rollers)), SG-222(14 (3 form inking rollers)), SG-224(14 (3 form inking rollers))
11 Water Rollers SG-218(5 (2 form inking rollers)), SG-222(5 (2 form inking rollers)), SG-224(5 (2 form inking rollers))
12 Power (single Phase) SG-218(2.5KW), SG-222(2.5KW), SG-224(3.0KW)
13 Overall Dimensions SG-218(2900 X 950 X 1340mm), SG-222(3200 x 1100 x 1340mm), SG-224(3500 x 1200 x 1500 mm)
14 Weight SG-218(1200 kg), SG-222(1300 kg), SG-224(1500)
Ask For Price

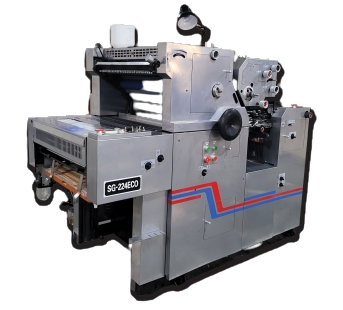

Two Colour Satellite Model Non Woven Bag Printing Machine

(SIZES: 14”X18.5”, 16”X22” & 18”X24.5”)
Non-woven double colour fabric bag printing machines satellite model is 2-in-1 Model Machine suitable to print two cut colours in single pass on Non-woven bags and Papers. SG has developed next generation Non -woven Satellite model two colour bag Printing Machines to offer high quality print results on Non Woven Cloth Printing. SG-222(ECO) Two Colour Non woven D cut bag printing machine is developed with a classic modern designing idea. It is not only carrying on the advantages of SG-122 model, but also having more advantage in features.

Sahil Imported Non woven Bag to Bag printing machine (Satellite Model) is compact & has an efficient design. Sahil bi-colour non woven fabric offset printing machines have been specially made for quick printing to meet the requirement for quality short/long run jobs on non woven d cut bags & fabrics. Utilizing technology to run non woven bag with vacuum pump developed by Sahil’s own R & D department the non-woven bag to bag printing machines have proved their worth not only in India but abroad as well.

We are delighted to offer our range of Spun bonded Non Woven Bags printing machine. In which you can print Pictures & Images, half tone jobs, background and screen jobs with decent print quality including maximum production. Sahil Eco Friendly Non woven bag to bag offset printing machines can accommodate any images you can produce. We give a nice machine to bringing out a best result in printing on non woven fabrics and to make beautiful bags for promotion & shopping.

Nonwoven bags are made of spun bonded non-woven fabric, composed of 100% polypropylene filaments, which can be recycled, naturally decompose and completely incinerates without any production of poisonous pollutant. The non woven fabric is flexible, durable, waterproof, and stain resistant and is breathable. The fabric can be manufactured in various attractive hues from mild to dark colors. The non woven is used in the textile manufacturing industry to denote fabrics, such as felt, which are neither woven nor knitted.

S no Name of equipment
1 Max.Paper/Bag Size(mm) SG-218 (ECO)(365 x 470), SG-222 (ECO)(406 x 560), SG-224 (ECO)(457x 620)
2 Max. Printing Area(mm) SG-218 (ECO)(345 x 450), SG-222 (ECO)(375 x 550), SG-224 (ECO)(440 x 605)
3 Min.Paper/Bag Size(mm) SG-218 (ECO)(125 x 180), SG-222 (ECO)(125 x 180), SG-224 (ECO)(180 x 260)
4 Plate Size(0.20-0.28mm) SG-218 (ECO)(395 x 470), SG-222 (ECO)(420 x 560), SG-224 (ECO)(505 x 620)
5 Blanket Size (mm) SG-218 (ECO)(420 x 470), SG-222 (ECO)(460 x560), SG-224 (ECO)(505x 620)
6 Paper thickness 30-250g/m2
7 Bag thickness 42-150g/m2
8 Printing Speed(for Paper) 2000-8000 IPH
9 Printing Speed (for Bags) 2000-3000 IPH
10 Ink Rollers SG-218 (ECO)(14 (3 form inking rollers)), SG-222 (ECO)(14 (3 form inking rollers)), SG-224 (ECO)(14 (3 form inking rollers))
11 Water Rollers SG-218 (ECO)(5 (2 form inking rollers)), SG-222 (ECO)(5 (2 form inking rollers)), SG-224 (ECO)(5 (2 form inking rollers))
12 Power (single Phase) SG-218 (ECO)(1.5KW), SG-222 (ECO)(1.5KW), SG-224 (ECO)(2.0KW)
13 Overall Dimensions SG-218 (ECO)(1760 X 935 X 1340mm), SG-222 (ECO)(1760 x 1035 x 1340mm), SG-224 (ECO)(2000 x 1100 x 1420 mm)
14 Weight SG-218 (ECO)(800kg), SG-222 (ECO)(900kg), SG-224 (ECO)(1000kg)
Ask For Price
