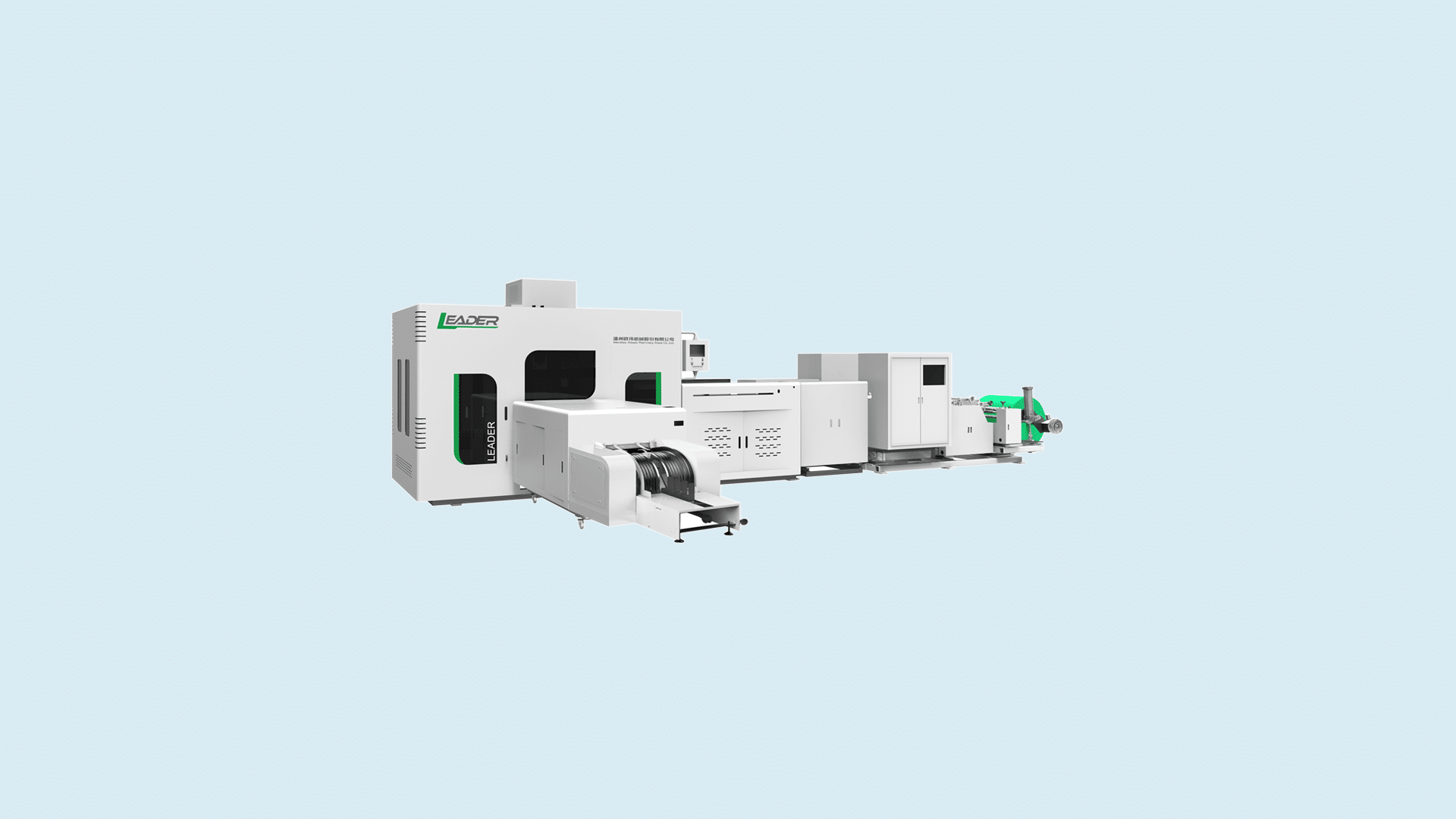

Laminated Non woven box bag making machine
Laminated Non woven box bag making machine

Laminated Box Bag Making Machine

Next generation box bag making machine

This machine is focused on the production of the laminated, coated and uncoated three-dimensional box bags with handle attachment.

Leader directly forms Non Woven Box Bag with loop handle automatically in one shot, no need to reverse to get finished box bag.

It is a fully automatic bag making machine, which can take place of 50 workers’ work. These bags are highly economical with very low production cost. It only needs two person, thus the labour force cost is largely saved.

Leader alone can serve with box bag making machine, bag making machine with handle and also laminated box bag making machine itself. It can produce over 50GSM non woven fabric and laminated fabric bags, such as food & beverage bags, wine bags, commodity bags, sweets bag, garment bags, shoes & hats bags, gift bags, etc.

Connect Now!

Machine Specifications

S no Name of equipment
1 Speed 30-50 PCS/MIN
2 Bag size and handle Bag gusset 8-20 cm Bag length 23-50 cm Bag height 18-45cm Handle length 37-52 cm
3 Fabric requirement Handle thickness 60-120 gsm Bag thickness 80-120 gsm
4 Total power and voltage requirement Air power 1.2m3/min, 1.0Mpa Voltage 380V, 50Hz, 3Phase
5 Total power 28KW
Machin Part 1
Machine Parts
Machine Parts
