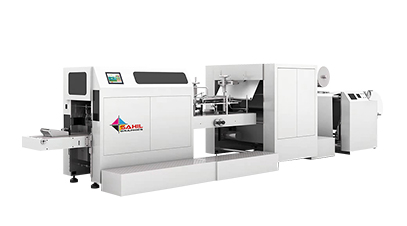

Paper Bag Making Machine(SG-PBM 270 / 350)

Model: SG-PBM 270 / 350

A revolutionary machine SG-PBM 270 / 350 which is mastered to produce finest paper bag with high performance speed.
Get the bags ready at minimum making cost. Great finishing equipped by precision geared motor and glue motor. Rugged structure ensures better quality and life of machine.

S no Name of equipment
1 Model SG-PBM 270, SG-PBM 350
2 Paper Weight 30-80 g/m2 , 30-80 g/m2
3 Bag Length 160-450 mm , 160-450 mm
4 Bag Width 70-270 mm , 70-350 mm
5 Paper Roll Width 260-720 mm , 260-900 mm
6 Unwind Roll Dia. 1000 mm , 1000 mm
7 Machine Speed 60-600 bags/min , 60-600 bags/min
8 Machine Weight (Approx.) 2000 kg , 2300 kg
9 Drive Motor 3.7 kw AC Variable , 3.7 kw AC Variable
10 Glue Motor 70 w , 70 w
11 Machine Dimension (Approx.) 3657 x 1960 x 1524 mm
Ask For Price

Paper Handle Making Machine

Fully automatic High speed handle making machine is used to make paper handles. By using paper rolls. It comprises with hot melt glue device to give finely finished paper handles. One stop solution to make paper handles.

Additional Information :

  • Item Code: SGHM-450
  • Delivery Time: Ready Stock
  • Packaging Details: shrink wrap


S no Name of equipment
1 Minimum Order Quantity 1 3 PAIR
2 Material KRAFT PAPER & HOLT MELT GLUE
3 Brand SAHIL GRAPHICS
4 Power Consumption 4.5kw
5 Voltage 220v
Ask For Price

Fully Automatic Sheet Feeding Paper Bag Making Machine with Top Fold

The ZB1200CS-430 sheet-feeding paper bag making machine is suitable for the mass bag production, it is the first choice of medium and top grade handbag device. The product adopts mechanical, electricity, light, gas integration technology, setting a number of its proprietary technology, use the creased sheet paper as raw material, can one-time finish, paper feeding, positioning, top folding, tube forming, gusset forming, square bottom folding and gluing automatic, and then compaction output. The variable speed drive technology, combined with the system of vertical and horizontal creasing, bottom folding realize trackless bag molding process. Using the PLC programmable control, frequency control technology to realize the integral multi-dimensional control, more centralized control and single point remote control operating system. With characteristics of good quality and high efficiency, its technology ranks leading level in domestic similar products.

Special Features :

  • Automatic feeder
  • Automatic side pasting
  • Automatic bottom folding
  • Automatic bottom pasting
  • Automatic top folding
  • Automatic gusset forming
  • Automatic
  • Screw rod adjusting bottom clip system

Suitable Paper Size :

ABCDEF
Max. Size120060017543050070
Min. Size5403208018025030

Art paper, white board and ivory board need lamination, over 160gsm need die-cutting in advance. 140/150gsm Kraft paper and 150/157gsm art paper no need to die-cutting.

Technical Process :

SG 1200CS – 430 – Optional Equipment :

Feeder
Enhanced prestack paper feeder to realize nonstop paper feeding, greatly save the time to load and adjust raw paper.

Compaction Output Unit
Compaction in layers by overlapping of bags Pneumatic pressure
Ensures fast and strong adhesion and compaction Operator friendly collection of output bags.

Nordson Hot-melt gluing system
Ensures high quality, fast and strong adhesion
In addition to water soluble cold glue system for gluing of thicker Paper.


S no Name of equipment
1 Input Max Size (Sheet) 1200X600mm
2 Input Min Size (Sheet) 540X320mm
3 Bottom Width 80-175mm
4 Bag Width 180-430mm
5 Sheet Weight 140-300g/m2
6 Speed 50-80PCS/Min
7 Machine Dimensions 14800 x 2400 x 1800 mm
8 Glue Type Holt Melt + Water Base
9 Machine Weight (Approx.) 12 T
10 Top Folding Deepth 30-70mm
11 Total Power 20kw
Ask For Price

Fully Automatic Paper Shopping Bag Making Machine with Top Fold

The sheet feeding SG1200C-430 paper bag producing machine is suitable for high volume paper bag production, using a blank sheet or creased paper. Equipped with PLC control, frequency-controlled speed adjustment as well as a remote control. Automatic, non-stop feeding register, side gluing, gusset forming, bottom folding and pasting, automatic collection and counting – all in one uninterrupted work-flow. Optional with compaction and output unit. Standard with environmentally friendly water-based cold glue system. Nordson hot-melt gluing unit for thicker paper as an option available. Tube edge pasting alternatively on the wide or small side. Capable to produce both, front- and back joint edge – providing a wide range of different bag types, whatever your customers’ needs or specific requirements. Stable operating at high speeds ensure high-quality paper bags, finished on time.

Special Features :

  • Pre-stack feeder
  • Font & Side guides positioning system
  • Hand crank creasing system
  • M side gusset making system
  • Blocked paper checking system
  • Screw and adjusting bottom clip system
  • Bottom catch bag roller & alert system
  • Automatic collection & counting system
  • Wide or small side gluing system

Suitable Paper Size :

ABCDEF
Max. Size120060017543050070
Min. Size5403208018025030

Art paper, white board and ivory board need lamination, over 160gsm need die-cutting in advance. 140/150gsm Kraft paper and 150/157gsm art paper no need to die-cutting.

Technical Process :

SG 1200C – 430 – Optional Equipment :

Compaction Output Unit
Compaction in layers by overlapping of bags Pneumatic pressure
Ensures fast and strong adhesion and compaction Operator friendly collection of output bags.

Nordson Hot-melt gluing system
Ensures high quality, fast and strong adhesion
In addition to water soluble cold glue system for gluing of thicker Paper.

S no Name of equipment
1 Input Max Size (Sheet) 1200X600mm
2 Input Min Size (Sheet) 560X320mm
3 Bottom Width 80-175mm
4 Bag Width 180-430mm
5 Sheet Weight 140-300g
6 Speed 50-80PCS/Min
7 Machine Dimensions 15150 x 2400 x 1800 mm
8 Glue Type Holt Melt + Water Base
9 Machine Weight (Approx.) 12 T
Ask For Price

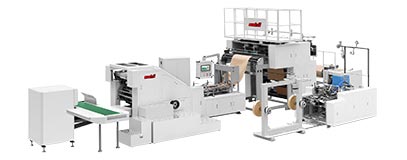

Fully Automatic Paper Bag Making Machine (PBM-460S)

SBR-460 Adjustable Roll square Bottom Paper Bag Making Machine. It Has The Advantages Of Fast Making. High Production Efficiency. Large Adjustment Range. Comprehensive Domestic inadequate Of Similar Products. Then to improve The New Equipment. This Equipment Make the Primary Color or Printed Roll paper To Glue on The Side. Folded Into A Tube. Glue on the Bottom. Bag Bottom Forming and Export Bags. The Machine Is Controlled By Computer Central Control System. Touch Screen Display. The Servo Motor Control The length Of Paper Bags. It Can Produce A Variety Of Sizes Paper Bags. The Fastest Can Reach To 220PCS/Min. It’s greatly reducing the Labor Costs. This Machine Is The Best Choice For Producing Square Bottom Paper Bags.

Special Features :

  • Material feeding using hydraulic lift structure. Unwinding automatic tension control.
  • Side glue using the auto gluing system.
  • Correction using the pausource from Taiwan.
  • Paper tube forming devices included thumb-cut function.
  • Automatic shutdown. When it run out material.
  • All of center clip. Drum clamps and drum machine are using spider synchronous adjustment mechanical design. It can significantly reduce the adjustment time to replace the size.
  • When Germany SICK photoelectric. Accurately tracking the printed materials.
  • Equipped with automatic lubrication supply system. Stoppage alarm system.
S no Name of equipment
1 Width of Paper 600-1300mm
2 Cutting Length 270-500mm
3 Width of Paper Bag 230-450mm
4 Length of Paper Bag 225-450mm
5 Width of Bag Bottom 80-180mm
6 Paper Weight 80-160mm
7 Max. Diameter of Paper Roll 1500mm
8 Internal Diameter of Roll Core 76mm
9 Max. Speed 150 Pcs/min
10 Power 15KW
11 Weight 9000 KG
12 Overall Dimension 9600mm X 2500mm X 1800mm
Ask For Price

Paper Bag Making Machine with 2 Color Printing ON-line

Model: SG-PBM 270C / 350C

A new dimension in the field of Bag Making Machine.
Sahil Graphics has added a new feather in its cap by introducing a new range of Grocery Bag Making Machine with an additional feature of 2 color printing On-Line & has also increased the maximum bag width upto 350mm under its new model
SG-PBM 350C …Color Delight


S no Name of equipment
1 Model SG-PBM 270C, SG-PBM 350C
2 Paper Weight 30-80gsm
3 Bag Length 160-450mm
4 Bag Width 70-270mm, SG-PBM 350C(70-350mm)
5 The Width of Paper Roll 260-720mm, SG-PBM 350C(260-900mm)
6 Unwind Roll Diameter 1000mm
7 Drive 3.7 kw AC Variable
8 Printing Type Flexo
9 Print Repeat Range 280-450mm
10 Glue Motor 70W
11 Max. Effective Printing Width 720mm
12 Flexo Plate Thickness 1.7mm
13 Machine Weight(Approx) 3000kg, SG-PBM 350C(3300kg)
14 Machine Dimension(Approx) 5480 x 1960 x 1830 mm
Ask For Price

Paper Bag Making Machine

This machine is used making paper bag @ speed 300bags/min

S no Name of equipment
1 Minimum Order Quantity 1 Piece
2 Max Bag Length 700 mm
3 Condition New
4 Voltage 220v
5 Model No. Bagmaker-700
6 Brand Sahil
7 Size 320-700
8 Dimension 8.5 mtr
9 Rated Productivity 150000 bags
10 Automation Grade Automatic
11 Capacity(Pieces per hour) 300
12 Max Bag Width 340
13 Gsm Of Paper 30-130
14 Motor Type gear type
15 Service Available pan India
16 Usage/Application food bags, grocery bags, shopping bags
17 Bag Size 320-700
18 Approximate Order Value 1
19 Power 4kw
20 Connected Load 4kw
21 Control automatic
22 Machine Weight 2.5 metric ton
23 Model Bagmaker-700
24 Bag Material Paper
25 Type Of Bag Carry Bag
Ask For Price

Automatic Paper Carry Bag Making Machine

ZB50B handbag bottom-gluing machine features a continuous functions of automatic delivery of manually-folded bag bottom (paperboard can inserted or not), automatic glue spray, automatic pasting, automatic folding, pressing and finished bag bottom output. This machine adopts touch-screen operation, photoelectric switch, and four hot-melt spray guns. The user can adjust the glue thickness and length according to requirements. With high precision and speed, this machine can produce various specifications of bags.

Suitable Paper :

ABC
Max.Size500450180
Min.Size20018060
  • Kraft paper, art paper, white board and ivory board.

Technical Parameters :

Bottom width60-180mm
Bag Width180-450mm
Sheet Wigth170g-350g/m2
Total power6kw
Machine size5500x1500x1600mm
Speed70bags/min
Total weight1.8T
Glue TypeHot-melt glue

Technological Process :

S no Name of equipment
1 Bottom width 60-180mm
2 Bag Width 180-450mm
Ask For Price

Sheet Feeding Bag Tube Forming Machine

ZB1100A-1 Sheet feeding bag tube forming machine is suitable for mass production of special paper and different types of polished and laminated paper (already creased sheet of paper as raw materials). It is the first equipment choice for manufacturing high-grade and luxury handbags. The paper  automatic delivery by feeder, automatic positioning by guide and line aligning system, automatic pasting by roll glue device, top folding or without automatic gusset forming, press bag output.

Suitable Paper :

ABCDE
Max.Size110060050057070
Min.Size60035029032030
  • Art paper, white board & ivory board need lamination.
  • All paper including Kraft paper need die-cutting in advacne.

Technical Parameters :

Max.Sheet (L x W)1020x600mm
Min.Sheet(L x W)600x350mm
Sheet weight170g-300g/m2
Total power10kw
Machine size9600x2000x1750mm
Speed40-70 bags/min
Total weight5T
Glue Type水溶性冷胶

Technological Process :

Selection and Other :

Optional  configuration hot melt adhesive system (using spray glue system), which can fast adhesion products,quickly enter to next process.


S no Name of equipment
1 Max.Sheet (L x W) 1020x600mm
2 Min.Sheet(L x W) 600x350mm
3 Sheet weight 170g-300g/m2
Ask For Price
