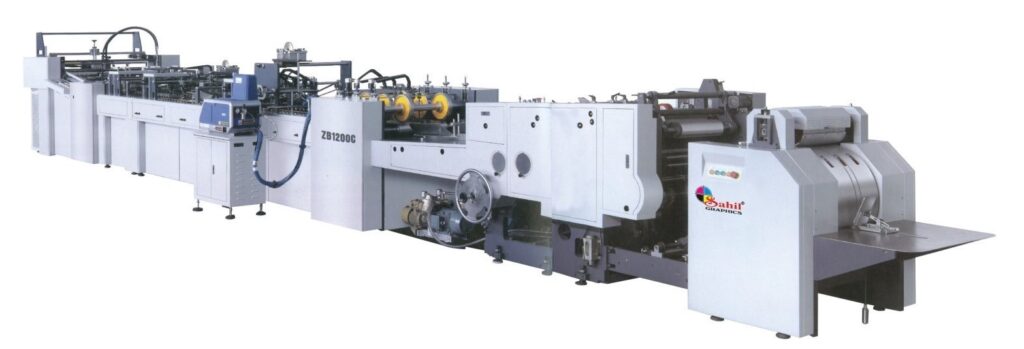

ZB1100A-1 Sheet feeding bag tube forming machine is suitable for mass production of special paper and different types of polished and laminated paper (already creased sheet of paper as raw materials). It is the first equipment choice for manufacturing high-grade and luxury handbags. The paper  automatic delivery by feeder, automatic positioning by guide and line aligning system, automatic pasting by roll glue device, top folding or without automatic gusset forming, press bag output.

Suitable Paper :

  • Art paper, white board & ivory board need lamination.
  • All paper including Kraft paper need die-cutting in advacne.

Technical Parameters :

Max.Sheet (L x W)1020x600mm
Min.Sheet(L x W)600x350mm
Sheet weight170g-300g/m2
Total power10kw
Machine size9600x2000x1750mm
Speed40-70 bags/min
Total weight5T
Glue Type水溶性冷胶

Technological Process :

Selection and Other :

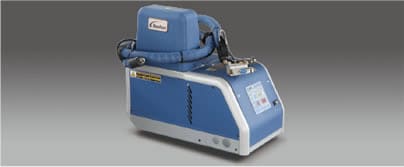

Optional  configuration hot melt adhesive system (using spray glue system), which can fast adhesion products,quickly enter to next process.

Connect Now!

Machine Specifications

S no Model
1 Max.Sheet (L x W) 1020x600mm
2 Min.Sheet(L x W) 600x350mm
3 Sheet weight 170g-300g/m2
Machin Part 3
Machine Parts
Machin Part 2
Machine Parts
Machin Part 1
Machine Parts
