(SG-75) Cup forming machine is a fully automatic chain cup forming equipment, which is supplied by our company independently through comprehensive technical improvement to improve the stability of the whole machine
| S no | Model | |||
|---|---|---|---|---|
| 1 | Model | SG-75 | ||
| 2 | Rated Speed | 60-70pcs/min | ||
| 3 | Paper Cup Size | 40-300ml (mold exchangeable) | ||
| 4 | Raw Material | 140-180gsm one side PE film coated paper | ||
| 5 | Power source | 380V, 50Hz Three Phase | ||
| 6 | Total power | 3.5 kw | ||
| 7 | Total weight | GW/NW:1400/1300KG | ||
| 8 | Overall dimension (LxWxH) | 2200X1100X1900mm | ||
| 9 | Working Air Source | No Need Air Compressor |
Model: 90 Pcs/min
Sahil’s SG-90 is a new fully automatic open-cam based machine for making High Quality Paper Cups with an excellent speed of 90 cups/min. The Overall technology is improved to increase the stability of the complete machine.
| S no | Name of equipment | |||
|---|---|---|---|---|
| 1 | Model | SG-90 | ||
| 2 | Speed | 80-85pcs/min, ( 3000-5000 PCS/Hour) | ||
| 3 | Paper Cup Size | 40-330 ml (Mold exchangeable) | ||
| 4 | Raw Material | 140-200 gsm One Side PE film coated paper | ||
| 5 | Power Source | 380V, 50Hz Three Phase | ||
| 6 | Total Power | 3.5Kw | ||
| 7 | Total Weight | GW/NW:2000/1900KG | ||
| 8 | Dimensions (LxWxH) | 2100X1300X1900mm |

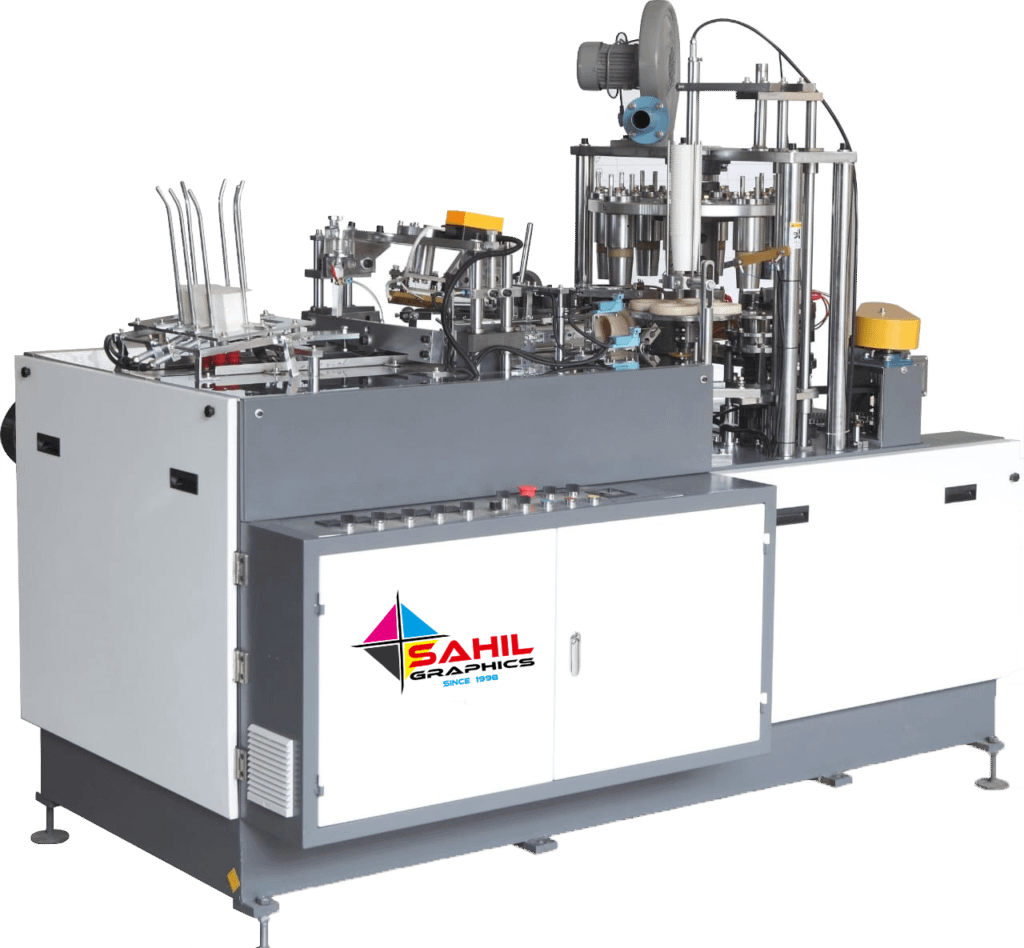

Paper Cup Making Machine
