Fully Automatic Paper Shopping Bag Making Machine with Top Fold

The sheet feeding SG1200C-430 paper bag producing machine is suitable for high volume paper bag production, using a blank sheet or creased paper. Equipped with PLC control, frequency-controlled speed adjustment as well as a remote control. Automatic, non-stop feeding register, side gluing, gusset forming, bottom folding and pasting, automatic collection and counting – all in one uninterrupted work-flow. Optional with compaction and output unit. Standard with environmentally friendly water-based cold glue system. Nordson hot-melt gluing unit for thicker paper as an option available. Tube edge pasting alternatively on the wide or small side. Capable to produce both, front- and back joint edge - providing a wide range of different bag types, whatever your customers’ needs or specific requirements. Stable operating at high speeds ensure high-quality paper bags, finished on time.

Special Features :

  • Pre-stack feeder
  • Font & Side guides positioning system
  • Hand crank creasing system
  • M side gusset making system
  • Blocked paper checking system
  • Screw and adjusting bottom clip system
  • Bottom catch bag roller & alert system
  • Automatic collection & counting system
  • Wide or small side gluing system

Suitable Paper Size :

Max. Size120060017543050070
Min. Size5403208018025030

Art paper, white board and ivory board need lamination, over 160gsm need die-cutting in advance. 140/150gsm Kraft paper and 150/157gsm art paper no need to die-cutting.

Technical Process :

SG 1200C - 430 - Optional Equipment :

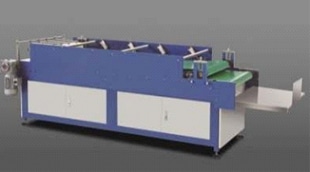

Compaction Output Unit
Compaction in layers by overlapping of bags Pneumatic pressure
Ensures fast and strong adhesion and compaction Operator friendly collection of output bags.

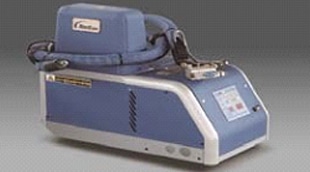

Nordson Hot-melt gluing system
Ensures high quality, fast and strong adhesion
In addition to water soluble cold glue system for gluing of thicker Paper.

Connect Now!

Machine Specifications

S no Name of equipment
1 Input Max Size (Sheet) 1200X600mm
2 Input Min Size (Sheet) 560X320mm
3 Bottom Width 80-175mm
4 Bag Width 180-430mm
5 Sheet Weight 140-300g
6 Speed 50-80PCS/Min
7 Machine Dimensions 15150 x 2400 x 1800 mm
8 Glue Type Holt Melt + Water Base
9 Machine Weight (Approx.) 12 T
Machin Part 3
Machine Parts
Machin Part 2
Machine Parts
Machin Part 1
Machine Parts
