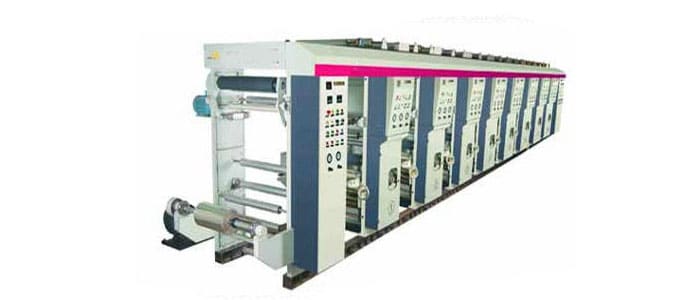

Rotogravure Printing Machine

High-speed computer Rotogravure Printing Machine (Winding And Unwinding Out)

The products in the domestic first seven motor using advanced PLC control system (seven vector motor control of the closed-loop tension control system, four paragraphs from the Japan Proton positions in the motor cylinder + ABB + Germany + Japan Yaskawa Siemens PLC) machine with excellent rigidity and job stability, compact structure, attractive appearance, suitable for a variety of web, printing gravure film.

Connect Now!

Machine Specifications

S no Name of equipment
1 Maximum width of base material(Max. Width of Web) AZJ-8650A(650mm), AZJ-8850A(850mm), AZJ-81050A(1050mm)
2 Top speed of printing Maximum(Max. Printing Speed) AZJ-8650A(140m/min), AZJ-8850A(140m/min), AZJ-81050A(140m/min)
3 diameter of coiling and uncoiling Inside(Max. Diameter of Unwind/Rewind) f600mm
4 diameter of base material coil(Internal Diameter of Roll Core) f76mm
5 Diameter of printing roller(Diameter of Printing Cylinder) f105-f380mm
6 Registration precision(Accuracy of Registration) ±0.1mm
7 Tension control scale(Tension Control Range) 3~25kg/Full Width
8 Oven heating power(Heating Power of Oven) AZJ-8650A(72kw), AZJ-8850A(96kw), AZJ-81050A(120kw)
9 Total power of machine(Total Power) AZJ-8650A(109kw), AZJ-8850A(136kw), AZJ-81050A(160.5kw)
10 Machine weight(Weight of Machine) AZJ-8650A(17000kg), AZJ-8850A(19000kg), AZJ-81050A(21000kg)
11 Boundary dimension(Overall Dimension) AZJ-8650A(L13500 x W3200 x H2500mm), AZJ-8850A(L13500 x W3400 x H2500mm), AZJ-81050A(L13500 x W3600 x H2500mm)
Machine Parts
Machin Part 3
Machine Parts
Machin Part 2
Machine Parts
Machin Part 1
Machine Parts
