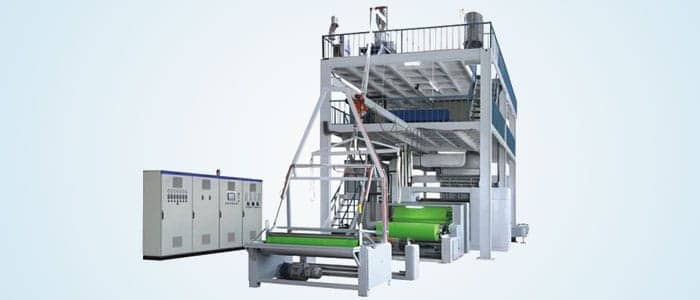

Non Woven Fabric Making Machine

We are reckoned as one of the top class manufacturers and exporters of Non Woven Fabric Making Machine Plant across the nation. Providing variety of designs like line, dot and cross pattern on the fabrics, these machines are offered in compliance with quality standards at feasible prices. Our range of machines is used to design non woven fabrics in various lengths. Available with all quality approved spare parts, customers appreciate this Non Woven Fabric Making Plant for maximum output. We manufacture our array of plant using supreme quality of materials with help of our team of experienced professionals and advanced technology.

Nonwoven fabrics are broadly defined as sheet or web structures bonded together by entangling fibre or filaments (and by perforating films) mechanically, thermally or chemically. They are flat, porous sheets that are made directly from separate fibres or from molten plastic or plastic film. Typically, certain percentage of recycled fabrics may be used in nonwoven fabrics. The percentage of recycled fabrics varies based upon the strength of material needed for the specific use. Conversely, some nonwoven fabrics can be recycled after use, given proper treatment and facilities. For this reason, some consider nonwovens a more ecological fabric for certain applications, especially in fields and industries where disposable or single use products are important, such as hospitals, schools, nursing homes and luxury accommodations.

Nonwoven fabrics are engineered fabrics that may be a limited life, single-use fabric or a very durable fabric. Nonwoven fabrics provide specific functions such as absorbency, liquid repellence, resilience, stretch, softness, strength, flame retardant, washable, cushioning, filtering, use as a bacterial barrier and sterility. These properties are often combined to create fabrics suited for specific jobs, while achieving a good balance between product use-life and cost. They can mimic the appearance, texture and strength of a woven fabric and can be as bulky as the thickest paddings. In combination with other materials they provide a spectrum of products with diverse properties, and are used alone or as components of apparel, home furnishings, health care, engineering, industrial and consumer goods.

S noName of equipment
1Screw extruder170/30 with DC Motor 132KW
2Scrap recovery screw extruder105/13 with AC Motor 15KW
3Powder? pellets automatic suction machineWith AC Motor 5.5KW
4Masterbatch, the mother of a small screw downwith 3 0.4KW AC (frequency control)
5Switched melt filter5.5 square
6Metering pumps and rotating equipmentwith 7.5KW inverter 300CC
7Spinning die3600MM
8Spinneret3600MM aperture 45S
9Stereotypes
10Slot draft device
11Side-blown aluminum bellows
12Side blowing, suction air duct
13Lapper madewith 11KW DC Motor
14Network chain3.63M * 9.5M
15Pairs of roller rolling mill480MM
16Electric heater48KW
17Mill electric heater48KW
18Full auto roll winderwith inflatable shaft 3
19Side-blown, wind suction fanwith 75KW, 55KW AC (frequency control)
20Monomer Fanwith 7.5KW AC (frequency control)
21Air-conditioned box300,000 kcal
22Refrigeration units300,000 kcal
23Slitter
24Steel platform8.6M * 9.5M
25Power distribution cabinet with touch screenMade de Germany
26Compressor motor7.5 KW
27Cooling tower60T / H
28Pumps and pipes7.5 KW
29Scene connected with wires and trunking
30Calciner
31Ultrasonic cleaning machine
32Motor hoist IT
