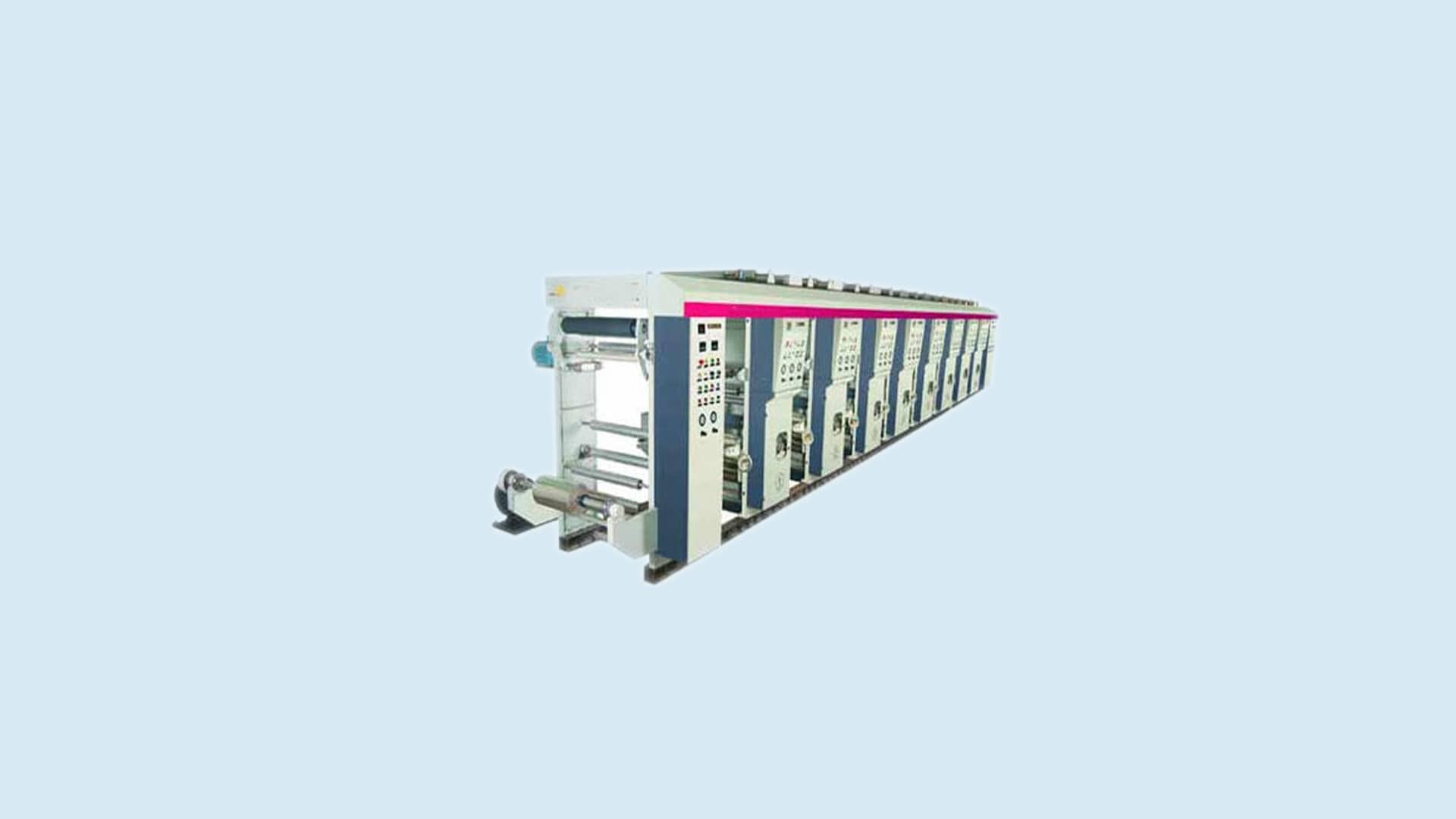

High-speed computer Rotogravure Printing Machine (Winding And Unwinding Out)
The products in the domestic first seven motor using advanced PLC control system (seven vector motor control of the closed-loop tension control system, four paragraphs from the Japan Proton positions in the motor cylinder + ABB + Germany + Japan Yaskawa Siemens PLC) machine with excellent rigidity and job stability, compact structure, attractive appearance, suitable for a variety of web, printing gravure film.
| S no | Name of equipment | |||
|---|---|---|---|---|
| 1 | Maximum width of base material(Max. Width of Web) | AZJ-8650A(650mm), AZJ-8850A(850mm), AZJ-81050A(1050mm) | ||
| 2 | Top speed of printing Maximum(Max. Printing Speed) | AZJ-8650A(140m/min), AZJ-8850A(140m/min), AZJ-81050A(140m/min) | ||
| 3 | diameter of coiling and uncoiling Inside(Max. Diameter of Unwind/Rewind) | f600mm | ||
| 4 | diameter of base material coil(Internal Diameter of Roll Core) | f76mm | ||
| 5 | Diameter of printing roller(Diameter of Printing Cylinder) | f105-f380mm | ||
| 6 | Registration precision(Accuracy of Registration) | ±0.1mm | ||
| 7 | Tension control scale(Tension Control Range) | 3~25kg/Full Width | ||
| 8 | Oven heating power(Heating Power of Oven) | AZJ-8650A(72kw), AZJ-8850A(96kw), AZJ-81050A(120kw) | ||
| 9 | Total power of machine(Total Power) | AZJ-8650A(109kw), AZJ-8850A(136kw), AZJ-81050A(160.5kw) | ||
| 10 | Machine weight(Weight of Machine) | AZJ-8650A(17000kg), AZJ-8850A(19000kg), AZJ-81050A(21000kg) | ||
| 11 | Boundary dimension(Overall Dimension) | AZJ-8650A(L13500 x W3200 x H2500mm), AZJ-8850A(L13500 x W3400 x H2500mm), AZJ-81050A(L13500 x W3600 x H2500mm) |

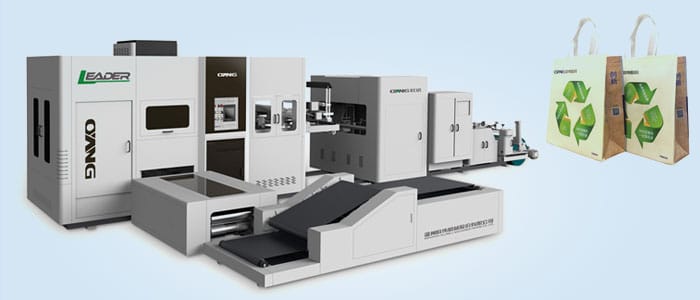

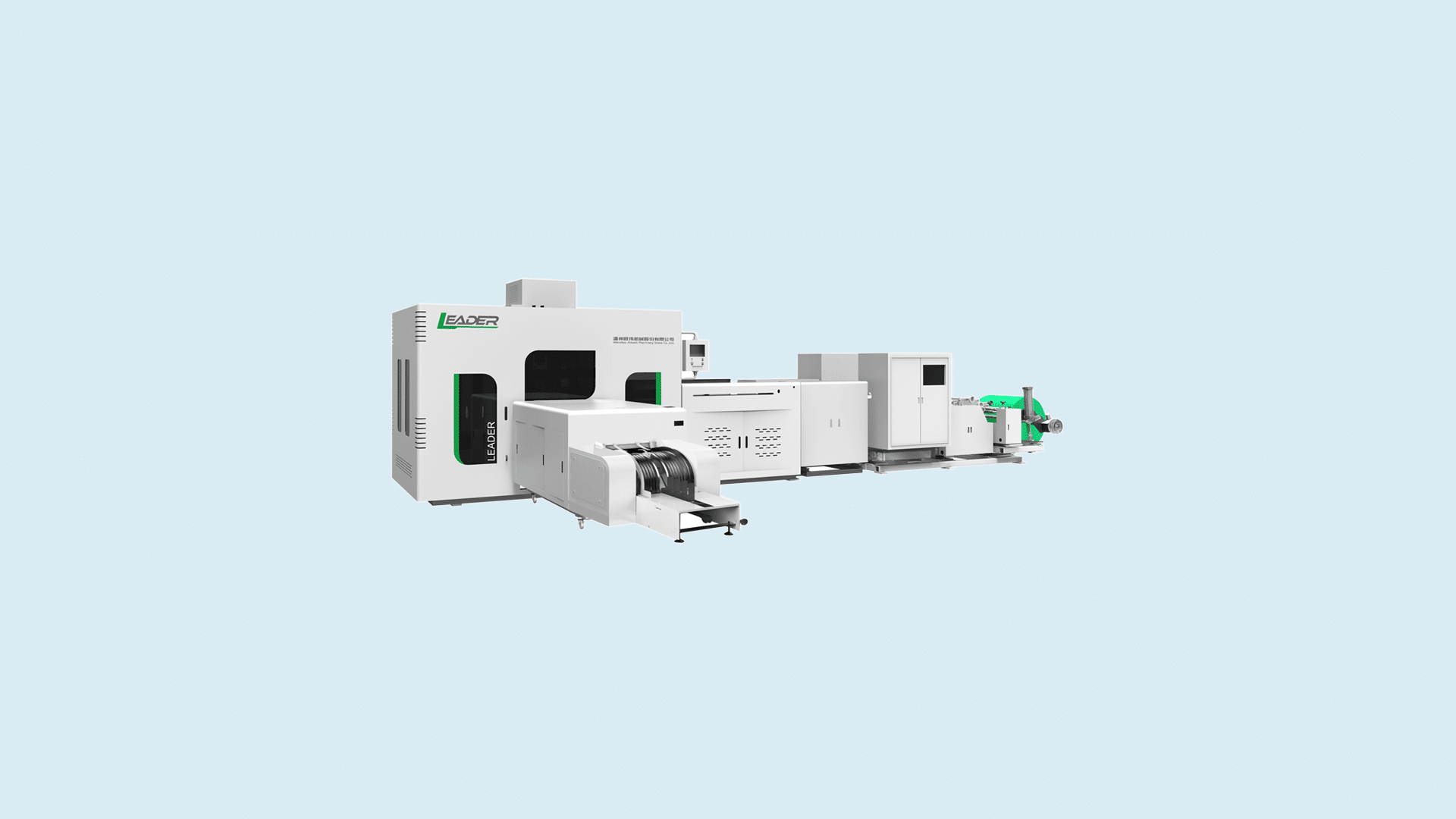

Next generation box bag making machine
This machine is focused on the production of the laminated, coated and uncoated three-dimensional box bags with handle attachment.
Leader directly forms Non Woven Box Bag with loop handle automatically in one shot, no need to reverse to get finished box bag.
It is a fully automatic bag making machine, which can take place of 50 workers’ work. These bags are highly economical with very low production cost. It only needs two person, thus the labour force cost is largely saved.
Leader alone can serve with box bag making machine, bag making machine with handle and also laminated box bag making machine itself. It can produce over 50GSM non woven fabric and laminated fabric bags, such as food & beverage bags, wine bags, commodity bags, sweets bag, garment bags, shoes & hats bags, gift bags, etc.
| S no | Name of equipment | |||
|---|---|---|---|---|
| 1 | Speed | 30-50 PCS/MIN | ||
| 2 | Bag size and handle | Bag gusset 8-20 cm Bag length 23-50 cm Bag height 18-45cm Handle length 37-52 cm | ||
| 3 | Fabric requirement | Handle thickness 60-120 gsm Bag thickness 80-120 gsm | ||
| 4 | Total power and voltage requirement | Air power 1.2m3/min, 1.0Mpa Voltage 380V, 50Hz, 3Phase | ||
| 5 | Total power | 28KW |
We are offering highly advanced Laminating & Coating Machine. We use a number of lamination and coating technologies that allow us to create packaging materials with diverse consumer qualities, based on appropriate combinations of raw materials.
| S no | Name of equipment | |||
|---|---|---|---|---|
| 1 | Die lip length(Extrusion die width) | ONL-M1100(1200mm), ONL-M1300(1400mm), ONL-M1600(1800mm), ONL-M1800(2000mm) | ||
| 2 | Product width (Coating width) | ONL-M1100(500-1000mm), ONL-M1300(600-1250mm), ONL-M1600(800-1500mm), ONL-M1800(900-1700mm) | ||
| 3 | Highest composite speed(Max. Coating speed) | ONL-M1100(10-150m/min), ONL-M1300(10-150m/min), ONL-M1600(10-150m/min), ONL-M1800(10-150m/min) | ||
| 4 | Film spraying thickness(Coating thickness) | ONL-M1100(0.01-0.03mm), ONL-M1300(0.01-0.03mm), ONL-M1600(0.01-0.03mm), ONL-M1800(0.01-0.03mm) | ||
| 5 | Screw draw ratio(L/d ratio for screw) | ONL-M1100(32:01:00), ONL-M1300(32:01:00), ONL-M1600(32:01:00), ONL-M1800(32:01:00) | ||
| 6 | Maximum diameter ratio of reeling and unreeling(Rewinding roll diameter) | 1200mm | ||
| 7 | Appearance dimension(Overall size) | ONL-M1100(12500×7000×3200mm), ONL-M1300(1300×8000×3200mm), ONL-M1600(12000×9000×3200mm ), ONL-M1800(13000×12000×3200mm) | ||
| 8 | Install power(Total power) | ONL-M1100(70kw), ONL-M1300(80kw), ONL-M1600(100kw), ONL-M1800(130kw) | ||
| 9 | Composite/mirror cold rod(Mirror cool roll diameter ) | ONL-M1100(510mm), ONL-M1300(510mm), ONL-M1600(510mm) | ||
| 10 | Applicable base material(Adopt material) | Non woven \ BOPP \ Aluminum foil |
