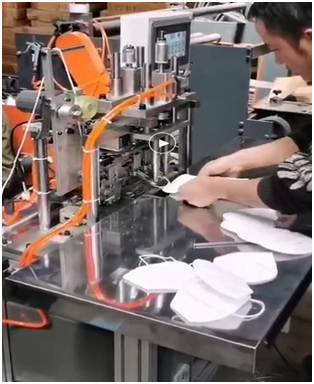

Semi-Automatic KN95 ear loop welding machine

Use:

  1. Specifically designed for welding ear loops on N95 mask. Easy to operation by put the N95 Mask on the mould and press the bottom.
  2. High precision welding, precise welding and the product positioning is accuracy.
  3. Mufti-specification can applied to ear loop welding the disposable 3ply mask and N95mask.
  4. Easy to operate. Process only need operator place the mask on the mould and press the bottom to start welding.
S no Name of equipment
1 Personnel requirements 1 worker
2 Raw materials Elastic bridge
3 Capacity 25-30 pcs/min
4 Machine size About 800(L)x 600(W)x 1500(H) mm
5 Air pressure 0.4-0.8 Mpa
6 Voltage 220V/50-60Hz
7 Mask type (Foldingmasks,suchasN95/KN95,childN95(Abletochangefor Disposable mask)
Ask For Price

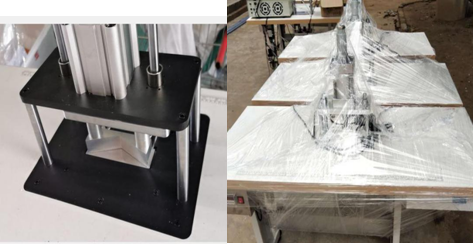

N95 Mask Sealing Machine (Big welding)

Features:

  1. KN95 ultrasonic welding machine, sewing equipment, mask sewing device Face mask welder is mainly used in the welding of edge of non-woven masks.
  2. We use the 20KHz ultrasonic welding system, it’s more fast welding and less noise.
  3. Ultrasonic welding machine with wear-resistant, long life and soon.
  4. Operation without preheating Continuous processing, fast, mass production, processing without smoke, sparks, do not harm the fabric edge.
  5. The machine is easy to operate, easy to understand, ordinary workers can operate on the machine.
  6. The use of low-noise ultrasonic, anti-noise interference.

S no Name of equipment
1 Name N95,KN95 ultrasonic welding machine
2 Frequency 20KHZ
3 Voltage 220v 50hz
4 air pressure 0.4-0.7Mpa
5 Dimension 1300*640*1150mm
6 Weight 120kg
7 welding speed 22pcs-25pcs/min
Ask For Price

Automatic Face mask making machine

Automatic face mask making machines used to make 3 layer blank mask.

Instruction:

This equipment is suitable for the fully automated production of flat masks, mainly including coil material feeding system, folding synthesis, nasal beam wire loading, mask molding, mask cutting, ear belt feeding and welding, finished material and other processes, complete the entire production process from the raw materials of the coil to the finished product of the mask, the production of masks with a comfortable wearing and non oppressive. The overall structure is shown as follows:

Main structure:

  1. Feeding and Folding Composition structure:
    Brief description and features:
    Manual loaning material, fully automatic feeding; automatic folding, multi-layer ultrasonic welding; Automatic cutting
  2. Feeding sheet-mask structure
    Brief description and features:
    The feeding structure adopts mold feeding, no flip mechanism, it can ensure the stable and high- efficient delivery.
  3. Outer ear band welding structure
    Brief description and features:
    Servo -step feeding material Automatic feeding with ear bands; Ultrasonic automatic welding system Automatic thermal pressing; Automatic collection

Technical parameters:

S no. Name Of Equipment
1 WIDE-FORMAT FOR MATERIALS
2 AIR PRESSURE FLUCTUATIONS +_1%
3 Outer Layer 175mm
4 Powder AC220V, 50HZ, single Phase
5 Filter Layer 175mm
6 Max Powder 10 KW
7 Inner Layer 185-195mm
8 Machine Size 5000x1100x1700mm 1200x1000x1000mm
9 Product Specification 175x95mm
10 Machine Weight 2.6 T
11 Productivity 40PCS/H
12 Compressed Air 0.4 MP~ 0.6 MPa
13 Pass Rate of equipment Products 99%
14 Except for raw materials and human operations

Main electrical equipment Device Branding

  1. Cylinder: AIRTAC
  2. Rail wire rod: HIWIN, Taiwan
  3. Solenoid Valve: AIRTAC
  4. PLC : Panasonic
  5. Touch screen: Panel master
  6. Inverter: HUAYUE
  7. Photoelectric inspection: Panasonic (or Keyence)

S no Name of equipment
1 Brand Sahil Graphics
2 Production Capacity 120 Pc/min
3 Power 4.5 Kw
4 Machine Type Automatic
5 Model Name/Number SGFM120
6 Size 15x5x8
Ask For Price

Fully Automatic Surgical Mask Making Machine

FULLY AUTOMATIC MASK MAKING MACHINE IS USED TO MAKE A COMPLETE MASK IN ONE SHOT

S no Name of equipment
1 Brand SAHIL GRAPHICS
2 Production Capacity 50 PS/MIN
3 Power 10 KW
4 Machine Type Automatic
5 Model Name/Number SGAFM50
6 Size(L*B*H) 20x20x5
Ask For Price

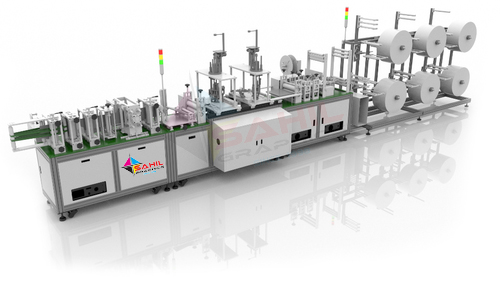

Automatic N95 MASK MAKING MACHINE

Fully Automatic N95 Mask Making Machine is used to make N95 Mask

Description:

  1. Machine adopt Ultrasonic melting technique, single man operation, all controlled by PLC.
  2. Automatic working from feeding lace sealing, cutting finished products.
  3. Machine frame adopts aluminum.Anti-rust, durable, easy cleaning and neat.
  4. Simple structure in linear type , easy in installation and maintenance.
  5. Adopting advanced world famous brand components in pneumatic parts , electric parts and operation parts.
  6. Machine add parts to insert nose strip if necessary.
  7. Machine body use Aluminum frame, so it is more stable and clean.
  8. This machine adopts PLC control system, which is easy to operate.

Mask Standard Description:

  1. N series is American standard
  2. KN series is Chinese standard,
  3. The FFP series is a European standard, The higher the number, the higher the protection level.
  4. It is easier to understand with a formula: FFP3 > FFP2 = N95 = KN95> Nose Strip Welding Machine

Machine details

  1. Use high hardness of emboss roller.
  2. Five feeding roller
  3. Auto waste collection
  4. Nose strip insert function
  5. PLC control system
S no Name of equipment
1 Brand SAHIL GRAPHICS
2 Production Capacity 70 pc/min
3 Power 15 kw
4 Machine Type Automatic
5 Model Name/Number SGN95
6 Size(L*B*H) 27x6x6
7 Production line model Automatic face mask machine
8 specification of the machine 350(L)*110(W)*2100(H)cm
9 Working power supply 220V 50-60Hz
10 The production efficiency 60-70pcs/min
11 Raw Material Width 255-260mm
12 Raw Material PP non woven, melt blown, cotton
13 Weight 665kg
Ask For Price

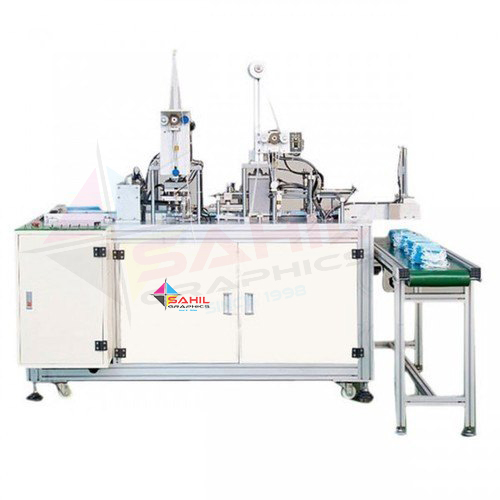

SGEL50 Automatic Earloop Welding Machine

Automatic Earloop machine is used to attach earloop aromatically on blank mask.

Instruction:

This equipment is suitable for the semi- automated ear loop welding , you need to feed the mask body by hand , and machine will welding the ear loop for both side automatic at one time , and after welding, it will collect together,and the production of masks with a comfortable wearing and non oppressive.

Main structure:

Outer ear band welding

  1. structure Servo -step feeding
  2. material Automatic feeding with earloops;
  3. Ultrasonic automatic welding system Automatic thermal pressing;
  4. Automatic collection.

Technical parameters:

S no. Name Of Equipment
1 Product specifications 175X95mm
2 Machine size 1300X1000X1700MM
3 Max power 4KW
4 Machine weight 300kgs
5 Productivity 40PCS/MIN
6 Compressed air 0.4MP~0.6MPa
7 Pass rate of equipment products 99%
8 Powder AC220V,50HZ,Single phase

Main electrical equipment Device Branding

  1. Cylinder:AIRTAC
  2. Rail wire rod: HIWIN,Taiwan
  3. Solenoid Valve:AIRTAC
  4. PLC :Panasonic
  5. touch screen :Panelmaster
  6. Inverter:HUAYUE
  7. Photoelectric inspection: Panasonic (orKeyence)
S no Name of equipment
1 Brand Sahil Graphics
2 Production Capacity 50 Pc
3 Power 50 Kw
4 Machine Type Automatic
5 Model Name/Number SGEL50
6 Size (L*B*H) 12x6x5
Ask For Price
